产品名称：BU8015
产品规格：80x80x15MM
General Specifications
| Material.............................. | Frame: Plastic(UL94V-0) |
| Impeller: Plastic(UL94V-0) | |
| Lead Wire: UL1007AWG#24 or Equivalent (+)Red, (-)Black | |
| Expected Life.................... | Ball Bearing 50,000hrs(40°C) |
| Sleeve Bearing 30,000hrs(40°C) | |
| Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
| Storage temperature -40°C~+70°C(Non-condensing) |

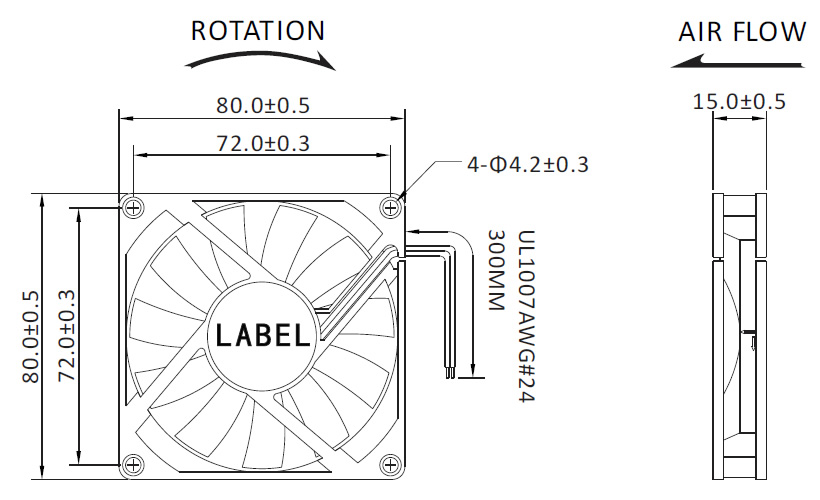

Dimensions(Unit:mm)

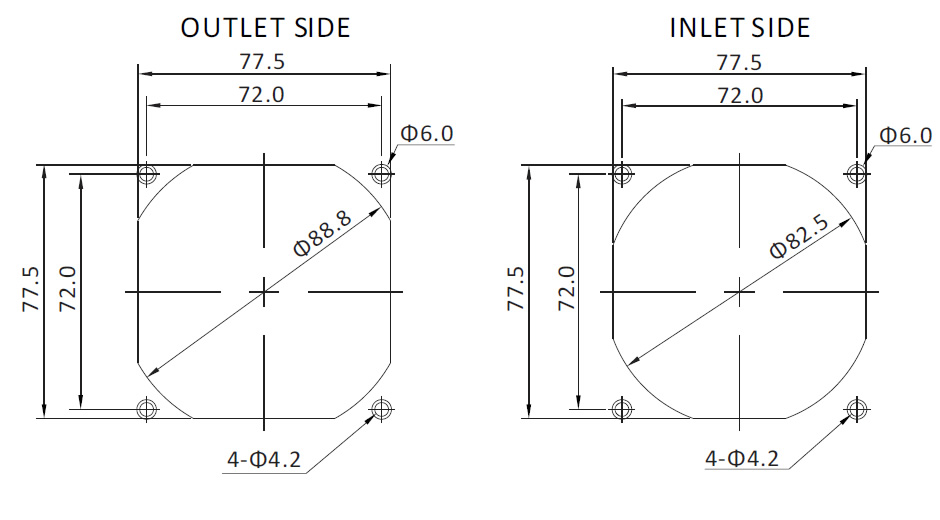

Mounting Panel Cutout (Unit:mm)

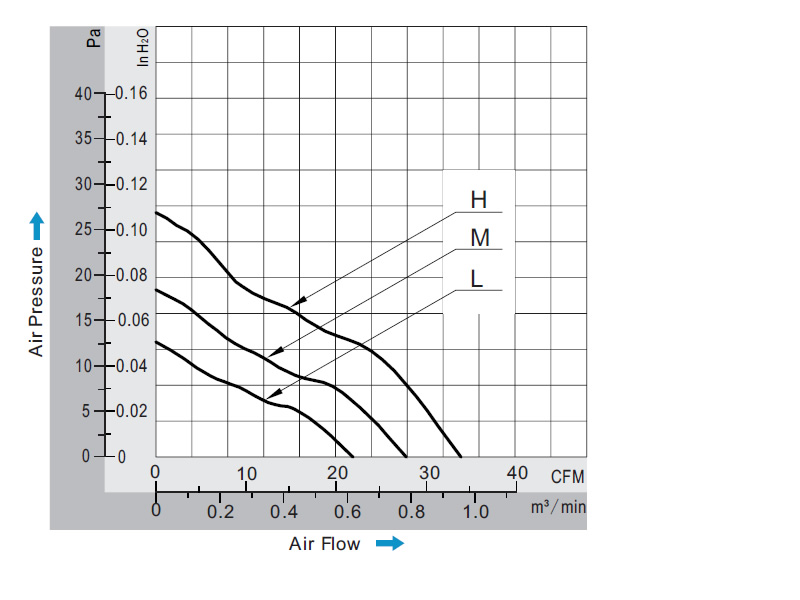

PQ Curve(At Rated Voltage)
Specifications
| 型号 | 轴承 | 额定电压 | 操作电压 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 | ||
| Model | Bearing Type |
Rated Voltage | Operating Voltage |
Input Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H2O | Pa | dB-A | g |
| BU8015#05M | B.S | 5 | 3.5~5.5 | 0.38 | 1.90 | 2500 | 27.45 | 0.78 | 0.08 | 18.73 | 27.0 | 54.0 |
| BU8015#05L | B.S | 5 | 3.5~5.5 | 0.25 | 1.25 | 2000 | 22.07 | 0.63 | 0.05 | 12.55 | 23.0 | 54.0 |
| BU8015#12H | B.S | 12 | 7.0~13.8 | 0.30 | 3.60 | 3000 | 34.33 | 0.97 | 0.11 | 27.16 | 33.0 | 54.0 |
| BU8015#12M | B.S | 12 | 7.0~13.8 | 0.20 | 2.40 | 2500 | 27.45 | 0.78 | 0.08 | 18.73 | 27.0 | 54.0 |
| BU8015#12L | B.S | 12 | 7.0~13.8 | 0.12 | 1.44 | 2000 | 22.07 | 0.63 | 0.05 | 12.55 | 23.0 | 54.0 |
| BU8015#24H | B.S | 24 | 14.0~27.6 | 0.18 | 4.32 | 3000 | 34.33 | 0.97 | 0.11 | 27.16 | 33.0 | 54.0 |
| BU8015#24M | B.S | 24 | 14.0~27.6 | 0.15 | 3.60 | 2500 | 27.45 | 0.78 | 0.08 | 18.73 | 27.0 | 54.0 |
| BU8015#24L | B.S | 24 | 14.0~27.6 | 0.10 | 2.40 | 2000 | 22.07 | 0.63 | 0.05 | 12.55 | 23.0 | 54.0 |
