产品名称：BU15050
产品规格：150x150x50MM
General Specifications
| Material.............................. | Frame: Aluminum Alloy ,Impeller: Plastic(UL94V-0) |
| Lead Wire: UL1007 22# black Terminal:2.5mm | |
| Motor.................................. | Shaded Pole & Internal Rotor Motor |
| Input Voltage................... | 110V/220V (optional) |
| Dielectric Strength......... | 50/60Hz ,1500VAC 1Min(between input terminal and frame) |
| Expected Life.................... | Ball Bearing 50000hrs, Sleeve Bearing 30000hrs(40°C) |
| Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
| Storage temperature -40°C~+70°C(Non-condensing) |

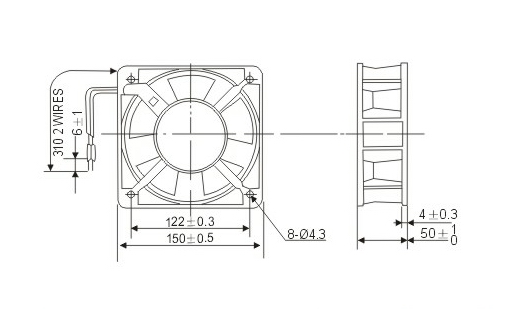

Dimensions(Unit:mm)
Mounting Panel Cutout (Unit:mm)
PQ Curve(At Rated Voltage)
Specifications
| 型号 | 轴承 | 电压 | 频率 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 |
| Model | Bearing Type |
Rated Voltage | Freq | Rated Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B/S | VAC | Hz | Amp | Watt | RPM | CFM | Inch-H2O | dB-A | g |
| BU15050HA1SA | Sleeve | 110~120 | 50/60 | 0.45/0.40 | 38/35 | 2600/3000 | 145/175 | 0.45/0.46 | 55/60 | |
| BU15050HA2SA | Sleeve | 220~240 | 50/60 | 0.21/0.20 | 38/35 | 2600/3000 | 145/175 | 0.35/0.42 | 55/60 | |
| BU15050HA3SA | Sleeve | 380 | 50/60 | 0.11/0.10 | 38/35 | 2500/2900 | 145/175 | 0.35/0.42 | 55/60 | |
| BU15050HA1BA | Dual Ball | 110~120 | 50/60 | 0.45/0.40 | 38/35 | 2700/3100 | 150/180 | 0.47/0.48 | 57/62 | |
| BU15050HA2BA | Dual Ball | 220~240 | 50/60 | 0.21/0.20 | 38/35 | 2700/3100 | 150/180 | 0.38/0.44 | 57/62 | |
| BU15050HA3BA | Dual Ball | 380 | 50/60 | 0.11/0.10 | 38/35 | 2700/3100 | 150/180 | 0.38/0.44 | 57/62 |
