产品名称:BU2510
产品规格:25x25x10MM
General Specifications
Material.............................. | Frame: Plastic(UL94V-0) |
Impeller: Plastic(UL94V-0) | |
Lead Wire: UL1007AWG#24 or Equivalent (+)Red, (-)Black | |
Expected Life.................... | Ball Bearing 50,000hrs(40°C) |
Sleeve Bearing 30,000hrs(40°C) | |
Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
Storage temperature -40°C~+70°C(Non-condensing) |

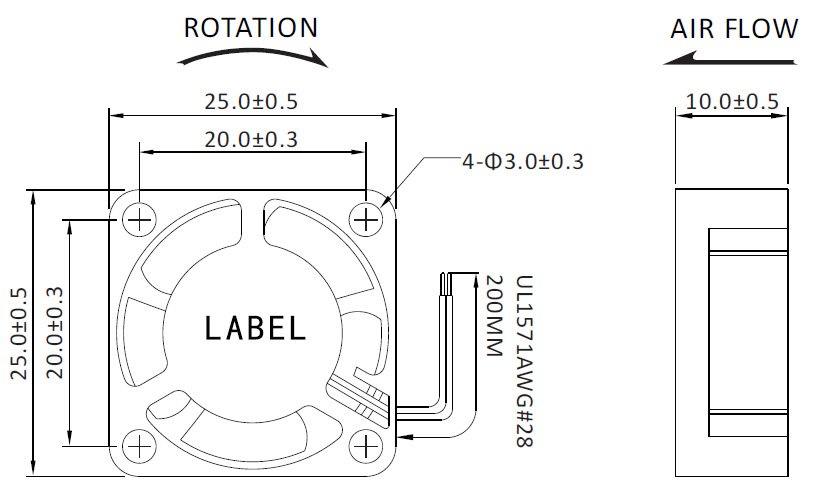

Dimensions(Unit:mm)

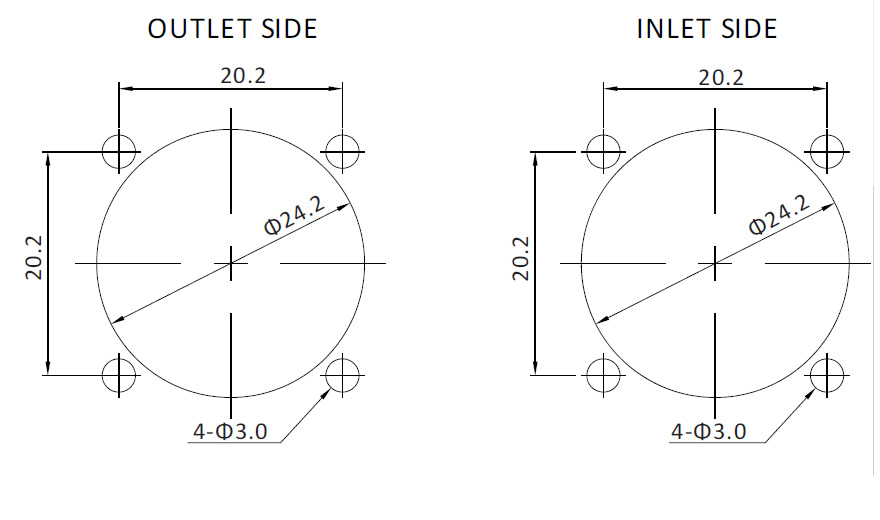

Mounting Panel Cutout (Unit:mm)

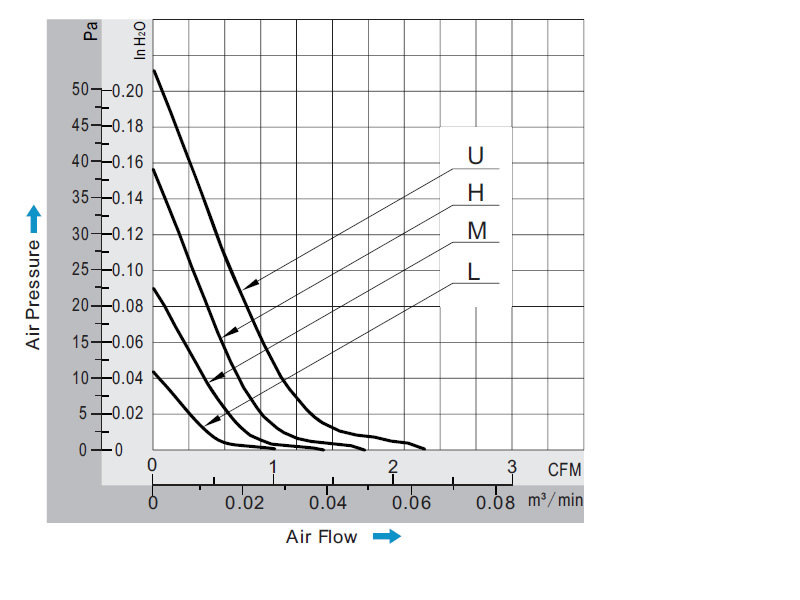

PQ Curve(At Rated Voltage)
Specifications
型号 | 轴承 | 额定电压 | 操作电压 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 | ||
Model | Bearing Type |
Rated Voltage | Operating Voltage |
Input Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H2O | Pa | dB-A | g |
BU2510#05U | B.S | 5 | 3.5~5.5 | 0.20 | 1.00 | 12000 | 2.24 | 0.06 | 0.21 | 51.39 | 27.0 | 6.0 |
BU2510#05H | B.S | 5 | 3.5~5.5 | 0.18 | 0.90 | 10000 | 1.91 | 0.05 | 0.16 | 39.42 | 25.0 | 6.0 |
BU2510#05M | B.S | 5 | 3.5~5.5 | 0.14 | 0.70 | 8000 | 1.46 | 0.04 | 0.09 | 22.65 | 22.0 | 6.0 |
BU2510#05L | B.S | 5 | 3.5~5.5 | 0.10 | 0.50 | 6000 | 1.00 | 0.03 | 0.05 | 13.44 | 18.0 | 6.0 |
BU2510#12U | B.S | 12 | 7.0~13.8 | 0.10 | 1.20 | 12000 | 2.24 | 0.06 | 0.21 | 51.39 | 27.0 | 6.0 |
BU2510#12H | B.S | 12 | 7.0~13.8 | 0.08 | 0.96 | 10000 | 1.91 | 0.05 | 0.16 | 39.42 | 25.0 | 6.0 |
BU2510#12M | B.S | 12 | 7.0~13.8 | 0.06 | 0.72 | 8000 | 1.46 | 0.04 | 0.09 | 22.65 | 22.0 | 6.0 |
BU2510#12L | B.S | 12 | 7.0~13.8 | 0.04 | 0.48 | 6000 | 1.00 | 0.03 | 0.05 | 13.44 | 18.0 | 6.0 |
