产品名称:BU3007
产品规格:30x30x7MM
General Specifications
Material.............................. | Frame: Plastic(UL94V-0) |
Impeller: Plastic(UL94V-0) | |
Lead Wire: UL1007AWG#24 or Equivalent (+)Red, (-)Black | |
Expected Life.................... | Ball Bearing 50,000hrs(40°C) |
Sleeve Bearing 30,000hrs(40°C) | |
Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
Storage temperature -40°C~+70°C(Non-condensing) |

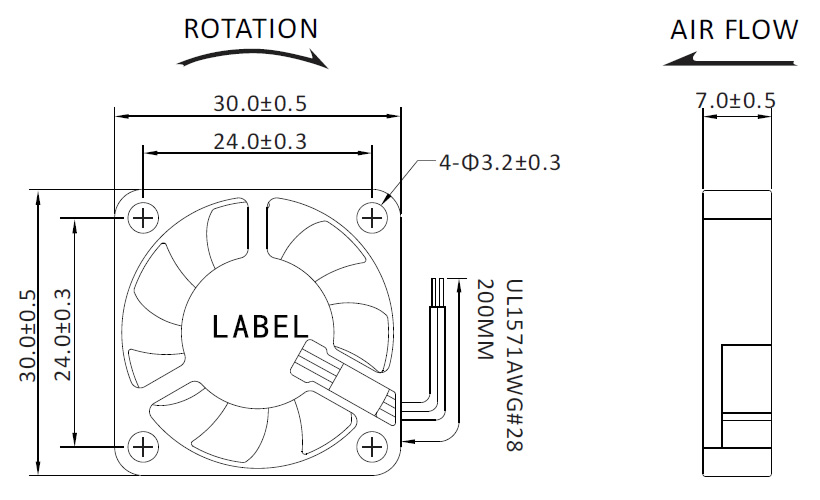

Dimensions(Unit:mm)

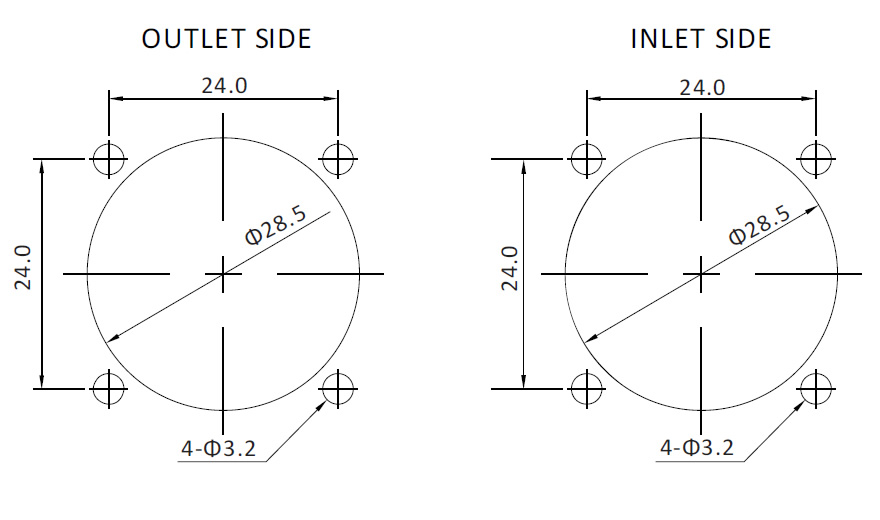

Mounting Panel Cutout (Unit:mm)

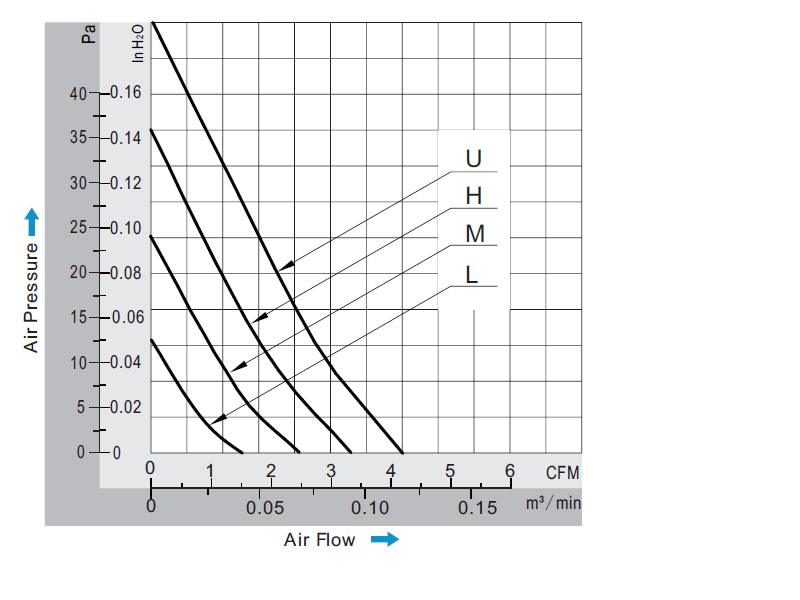

PQ Curve(At Rated Voltage)
Specifications
型号 | 轴承 | 额定电压 | 操作电压 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 | ||
Model | Bearing Type |
Rated Voltage | Operating Voltage |
Input Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H2O | Pa | dB-A | g |
BU3007#05U | B.S | 5 | 3.5~5.5 | 0.22 | 1.10 | 12000 | 4.07 | 0.12 | 0.20 | 48.94 | 35.0 | 6.0 |
BU3007#05H | B.S | 5 | 3.5~5.5 | 0.18 | 0.90 | 10000 | 3.34 | 0.09 | 0.14 | 35.60 | 31.0 | 6.0 |
BU3007#05M | B.S | 5 | 3.5~5.5 | 0.14 | 0.70 | 8000 | 2.48 | 0.07 | 0.10 | 23.93 | 26.0 | 6.0 |
BU3007#05L | B.S | 5 | 3.5~5.5 | 0.10 | 0.50 | 6000 | 1.57 | 0.04 | 0.05 | 11.67 | 22.0 | 6.0 |
BU3007#12U | B.S | 12 | 7.0~13.8 | 0.12 | 1.44 | 12000 | 4.07 | 0.12 | 0.20 | 48.94 | 35.0 | 6.0 |
BU3007#12H | B.S | 12 | 7.0~13.8 | 0.09 | 1.08 | 10000 | 3.34 | 0.09 | 0.14 | 35.60 | 31.0 | 6.0 |
BU3007#12M | B.S | 12 | 7.0~13.8 | 0.07 | 0.84 | 8000 | 2.48 | 0.07 | 0.10 | 23.93 | 26.0 | 6.0 |
BU3007#12L | B.S | 12 | 7.0~13.8 | 0.05 | 0.60 | 6000 | 1.57 | 0.04 | 0.05 | 11.67 | 22.0 | 6.0 |
