产品名称：BU3010
产品规格：30x30x10MM
General Specifications
| Material.............................. | Frame: Plastic(UL94V-0) |
| Impeller: Plastic(UL94V-0) | |
| Lead Wire: UL1007AWG#24 or Equivalent (+)Red, (-)Black | |
| Expected Life.................... | Ball Bearing 50,000hrs(40°C) |
| Sleeve Bearing 30,000hrs(40°C) | |
| Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
| Storage temperature -40°C~+70°C(Non-condensing) |

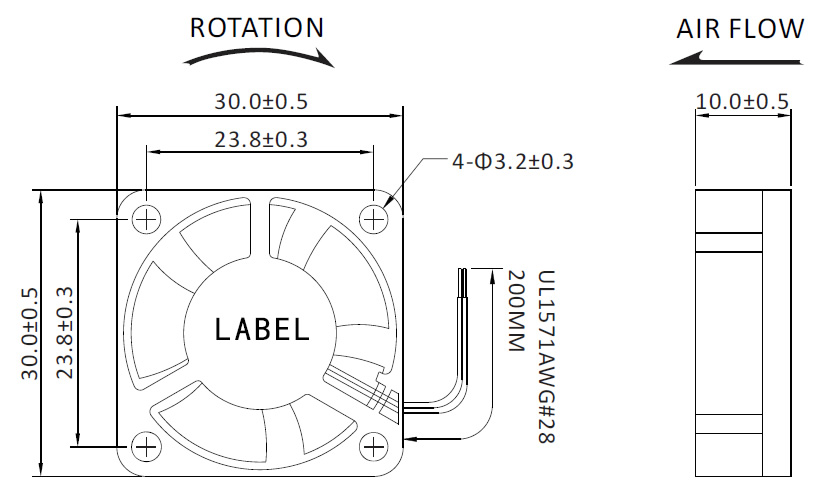

Dimensions(Unit:mm)
Mounting Panel Cutout (Unit:mm)

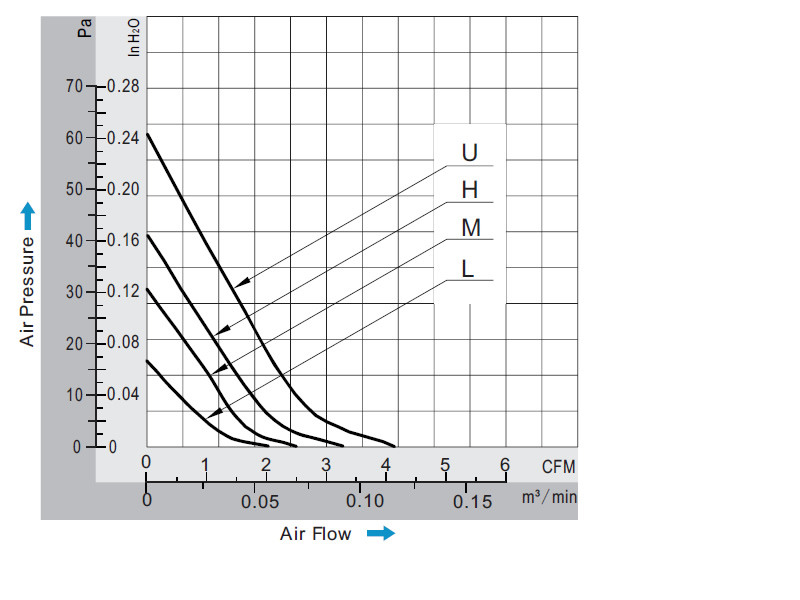

PQ Curve(At Rated Voltage)
Specifications
| 型号 | 轴承 | 额定电压 | 操作电压 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 | ||
| Model | Bearing Type |
Rated Voltage | Operating Voltage |
Input Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H2O | Pa | dB-A | g |
| BU3010#05U | B.S | 5 | 3.5~5.5 | 0.28 | 1.40 | 12000 | 4.15 | 0.12 | 0.25 | 61.10 | 34.0 | 8.0 |
| BU3010#05H | B.S | 5 | 3.5~5.5 | 0.20 | 1.00 | 10000 | 3.38 | 0.10 | 0.17 | 41.58 | 29.0 | 8.0 |
| BU3010#05M | B.S | 5 | 3.5~5.5 | 0.15 | 0.75 | 8000 | 2.49 | 0.07 | 0.13 | 31.68 | 24.0 | 8.0 |
| BU3010#05L | B.S | 5 | 3.5~5.5 | 0.10 | 0.50 | 6000 | 2.01 | 0.06 | 0.07 | 16.87 | 21.0 | 8.0 |
| BU3010#12U | B.S | 12 | 7.0~13.8 | 0.12 | 1.44 | 12000 | 4.15 | 0.12 | 0.25 | 61.10 | 34.0 | 8.0 |
| BU3010#12H | B.S | 12 | 7.0~13.8 | 0.10 | 1.20 | 10000 | 3.38 | 0.10 | 0.17 | 41.58 | 29.0 | 8.0 |
| BU3010#12M | B.S | 12 | 7.0~13.8 | 0.08 | 0.96 | 8000 | 2.49 | 0.07 | 0.13 | 31.68 | 24.0 | 8.0 |
| BU3010#12L | B.S | 12 | 7.0~13.8 | 0.05 | 0.60 | 6000 | 2.01 | 0.06 | 0.07 | 16.87 | 21.0 | 8.0 |
