产品名称：BU4020
产品规格：40x40x20MM
General Specifications
| Material.............................. | Frame: Plastic(UL94V-0) |
| Impeller: Plastic(UL94V-0) | |
| Lead Wire: UL1007AWG#24 or Equivalent (+)Red, (-)Black | |
| Expected Life.................... | Ball Bearing 50,000hrs(40°C) |
| Sleeve Bearing 30,000hrs(40°C) | |
| Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
| Storage temperature -40°C~+70°C(Non-condensing) |

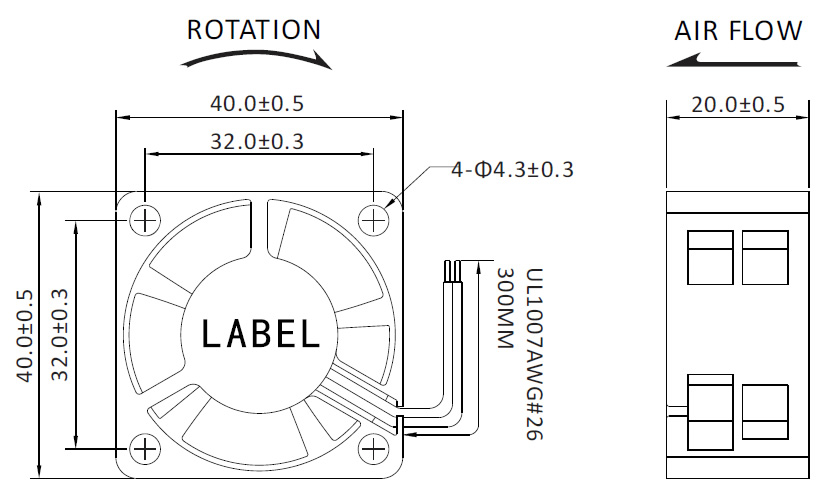

Dimensions(Unit:mm)

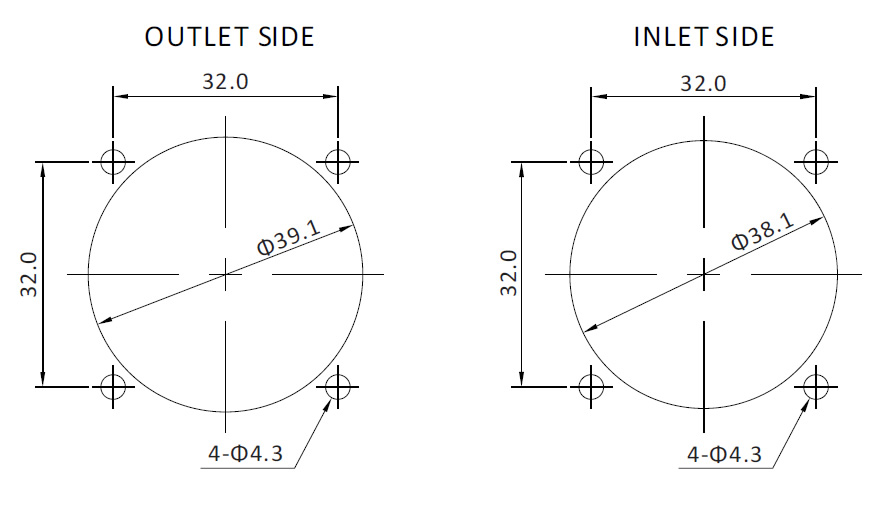

Mounting Panel Cutout (Unit:mm)

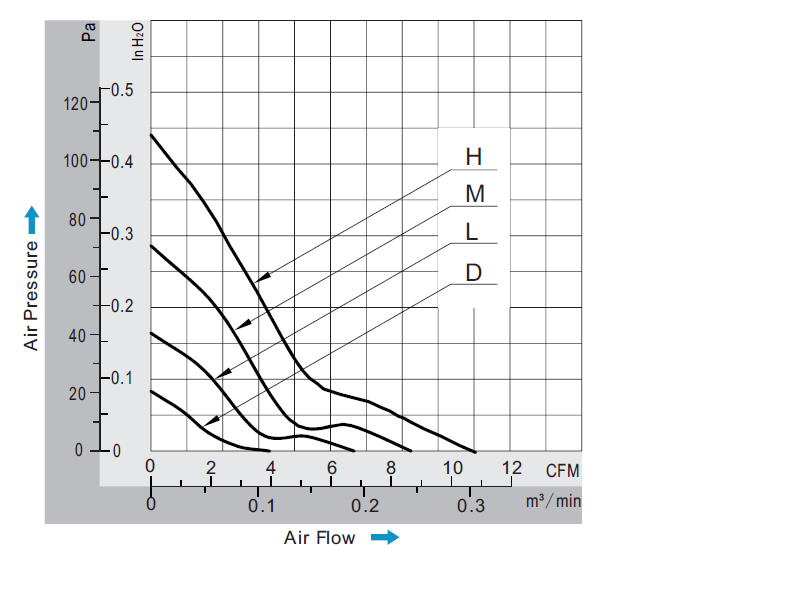

PQ Curve(At Rated Voltage)
Specifications
| 型号 | 轴承 | 额定电压 | 操作电压 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 | ||
| Model | Bearing Type |
Rated Voltage | Operating Voltage |
Input Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H2O | Pa | dB-A | g |
| BU4020#05H | B.S | 5 | 3.5~5.5 | 0.40 | 2.00 | 10000 | 10.79 | 0.31 | 0.43 | 106.40 | 38.0 | 24.0 |
| BU4020#05M | B.S | 5 | 3.5~5.5 | 0.25 | 1.25 | 8000 | 8.43 | 0.24 | 0.27 | 68.16 | 35.0 | 24.0 |
| BU4020#05L | B.S | 5 | 3.5~5.5 | 0.18 | 0.90 | 6000 | 6.47 | 0.18 | 0.16 | 39.72 | 27.0 | 24.0 |
| BU4020#05D | B.S | 5 | 3.5~5.5 | 0.10 | 0.50 | 4000 | 3.93 | 0.11 | 0.07 | 17.46 | 23.0 | 24.0 |
| BU4020#12H | B.S | 12 | 7.0~13.8 | 0.16 | 1.92 | 10000 | 10.79 | 0.31 | 0.43 | 106.40 | 38.0 | 24.0 |
| BU4020#12M | B.S | 12 | 7.0~13.8 | 0.13 | 1.56 | 8000 | 8.43 | 0.24 | 0.27 | 68.16 | 35.0 | 24.0 |
| BU4020#12L | B.S | 12 | 7.0~13.8 | 0.08 | 0.96 | 6000 | 6.47 | 0.18 | 0.16 | 39.72 | 27.0 | 24.0 |
| BU4020#12D | B.S | 12 | 7.0~13.8 | 0.05 | 0.60 | 4000 | 3.93 | 0.11 | 0.07 | 17.46 | 23.0 | 24.0 |
| BU4020#24H | B.S | 24 | 14.0~27.6 | 0.12 | 2.88 | 10000 | 10.79 | 0.31 | 0.43 | 106.40 | 38.0 | 24.0 |
| BU4020#24M | B.S | 24 | 14.0~27.6 | 0.08 | 1.92 | 8000 | 8.43 | 0.24 | 0.27 | 68.16 | 35.0 | 24.0 |
| BU4020#24L | B.S | 24 | 14.0~27.6 | 0.05 | 1.20 | 6000 | 6.47 | 0.18 | 0.16 | 39.72 | 27.0 | 24.0 |
