产品名称：BU5015

产品规格：50x50x15MM

General Specifications

Material.............................. Frame: Plastic(UL94V-0)
  Impeller: Plastic(UL94V-0)
  Lead Wire: UL1007AWG#24 or Equivalent (+)Red, (-)Black
Expected Life.................... Ball Bearing 50,000hrs(40°C)
  Sleeve Bearing 30,000hrs(40°C)
Temperature Range....... Operating temperature -10°C~+70°C(Non-condensing)
  Storage temperature -40°C~+70°C(Non-condensing)

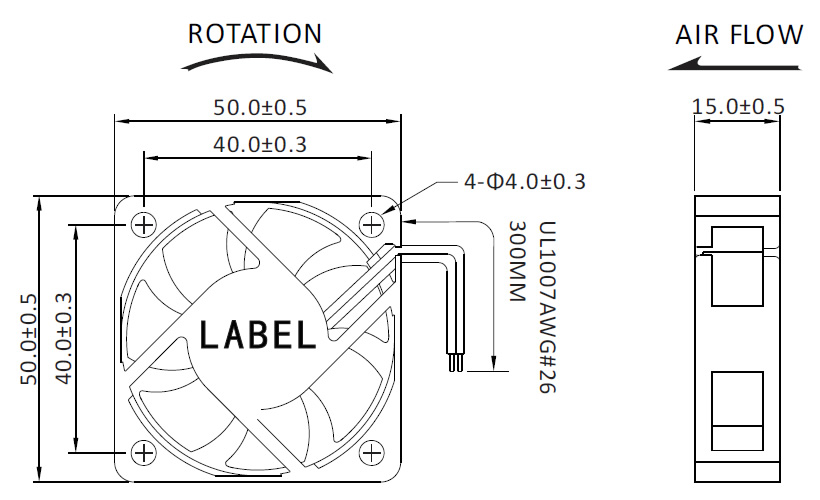

Dimensions(Unit:mm)

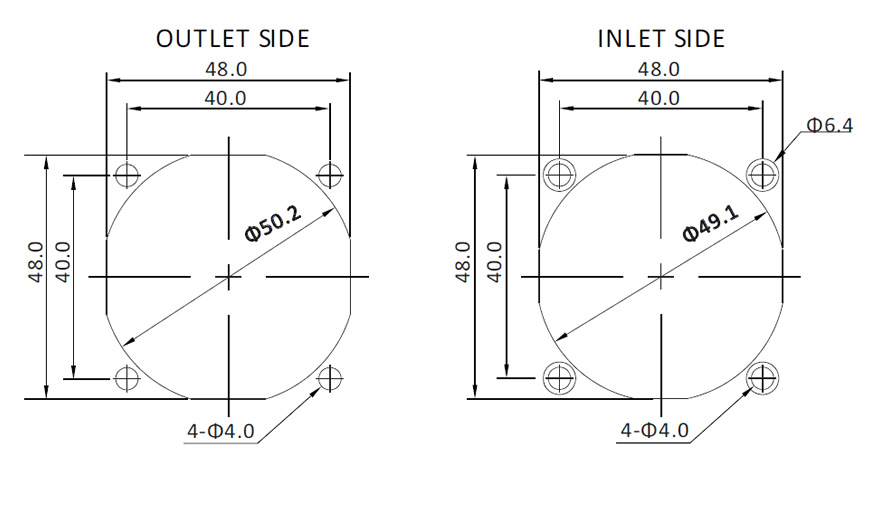

Mounting Panel Cutout (Unit:mm)

PQ Curve(At Rated Voltage)

Specifications

型号 轴承 额定电压 操作电压 电流 功率 转速 风量 风压 噪声 重量
Model Bearing
Type		 Rated Voltage Operating
Voltage		 Input
Current		 Input
Power		 Speed Max Air Flow Max Static Pressure Noise Weight
Part No. B.S VDC VDC Amp Watt RPM CFM m³/min Inch-H2O Pa dB-A g
BU5015#05H B.S 5 3.5~5.5 0.50 2.50 6000 14.74 0.42 0.21 52.76 34.0 29.0
BU5015#05M B.S 5 3.5~5.5 0.35 1.75 5500 13.29 0.38 0.18 45.11 31.0 29.0
BU5015#05L B.S 5 3.5~5.5 0.25 1.25 5000 12.86 0.36 0.16 40.89 27.0 29.0
BU5015#05D B.S 5 3.5~5.5 0.20 1.00 4500 11.29 0.32 0.13 32.36 25.0 29.0
BU5015#12U B.S 12 7.0~13.8 0.20 2.40 6500 15.90 0.45 0.25 62.57 36.0 29.0
BU5015#12H B.S 12 7.0~13.8 0.16 1.92 6000 14.74 0.42 0.21 52.76 34.0 29.0
BU5015#12M B.S 12 7.0~13.8 0.14 1.68 5500 13.29 0.38 0.18 45.11 31.0 29.0
BU5015#12L B.S 12 7.0~13.8 0.12 1.44 5000 12.86 0.36 0.16 40.89 27.0 29.0
BU5015#12D B.S 12 7.0~13.8 0.10 1.20 4500 11.29 0.32 0.13 32.36 25.0 29.0
BU5015#24U B.S 24 14.0~27.6 0.12 2.88 6500 15.90 0.45 0.25 62.57 36.0 29.0
BU5015#24H B.S 24 14.0~27.6 0.10 2.40 6000 14.74 0.42 0.21 52.76 34.0 29.0
BU5015#24M B.S 24 14.0~27.6 0.08 1.92 5500 13.29 0.38 0.18 45.11 31.0 29.0
BU5015#24L B.S 24 14.0~27.6 0.07 1.68 5000 12.86 0.36 0.16 40.89 27.0 29.0
BU5015#24D B.S 24 14.0~27.6 0.06 1.44 4500 11.29 0.32 0.13 32.36 25.0 29.0
