产品名称：BU7020
产品规格：70x70x20MM
General Specifications
| Material.............................. | Frame: Plastic(UL94V-0) |
| Impeller: Plastic(UL94V-0) | |
| Lead Wire: UL1007AWG#24 or Equivalent (+)Red, (-)Black | |
| Expected Life.................... | Ball Bearing 50,000hrs(40°C) |
| Sleeve Bearing 30,000hrs(40°C) | |
| Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
| Storage temperature -40°C~+70°C(Non-condensing) |

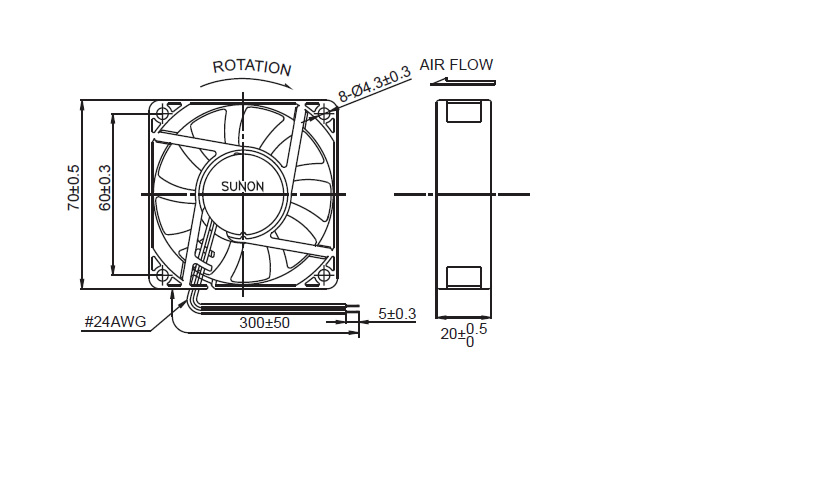

Dimensions(Unit:mm)

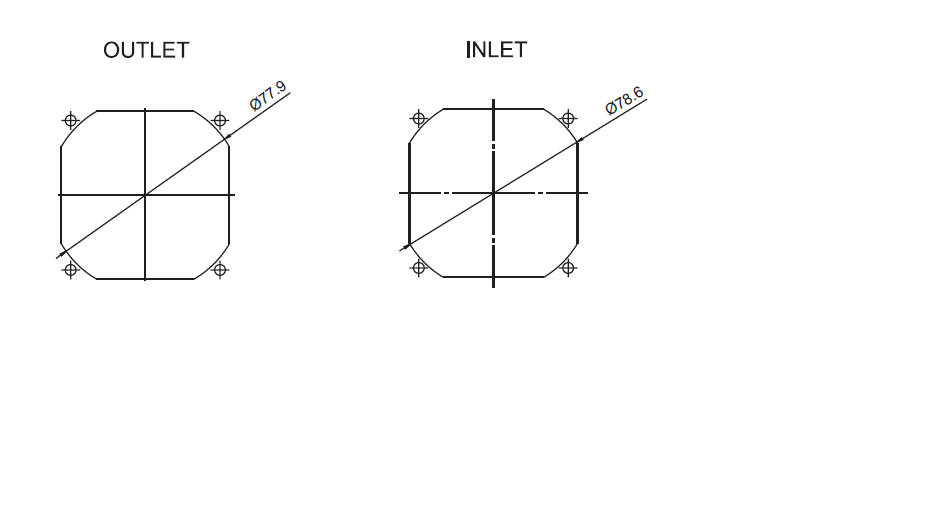

Mounting Panel Cutout (Unit:mm)

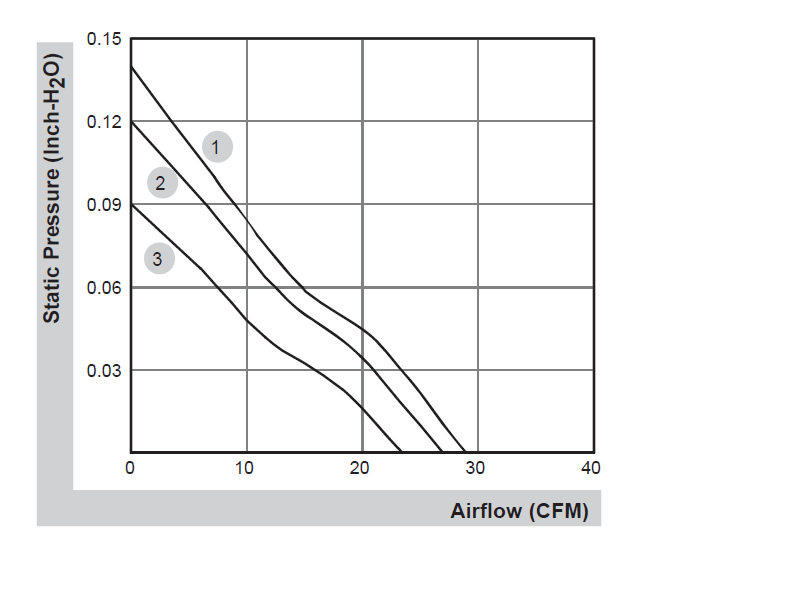

PQ Curve(At Rated Voltage)
Specifications
| 型号 | 轴承 | 电压 | 频率 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 |
| Model | Bearing Type |
Rated Voltage | Freq | Rated Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B/S | VAC | Hz | Amp | Watt | RPM | CFM | Inch-H2O | dB-A | g |
| BU7020#12H | Sleeve | 12 | 285 | 3.42 | 4800 | 43.0 | 0.28 | 41.5 | 80.0 | |
| BU7020#12M | Sleeve | 12 | 230 | 2.76 | 4300 | 40.0 | 0.24 | 40.0 | 80.0 | |
| BU7020#12L | Sleeve | 12 | 195 | 2.34 | 4000 | 37.0 | 0.21 | 37.5 | 80.0 |
