产品名称：BU8038
产品规格：80x80x38MM
General Specifications
| Material.............................. | Frame: Plastic(UL94V-0) |
| Impeller: Plastic(UL94V-0) | |
| Lead Wire: UL1007AWG#24 or Equivalent (+)Red, (-)Black | |
| Expected Life.................... | Ball Bearing 50,000hrs(40°C) |
| Sleeve Bearing 30,000hrs(40°C) | |
| Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
| Storage temperature -40°C~+70°C(Non-condensing) |

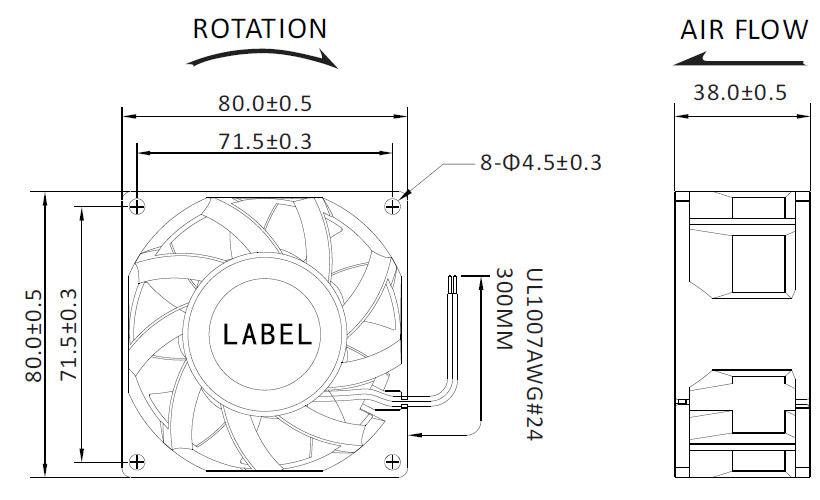

Dimensions(Unit:mm)

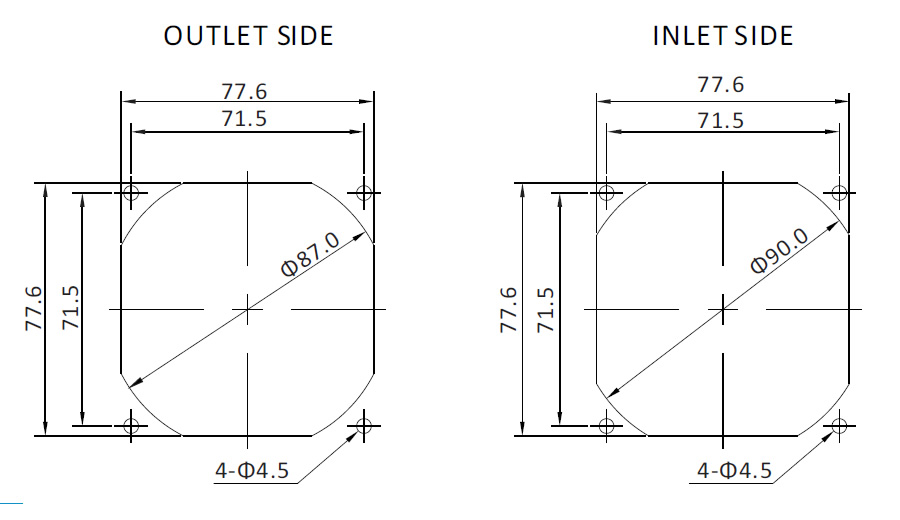

Mounting Panel Cutout (Unit:mm)

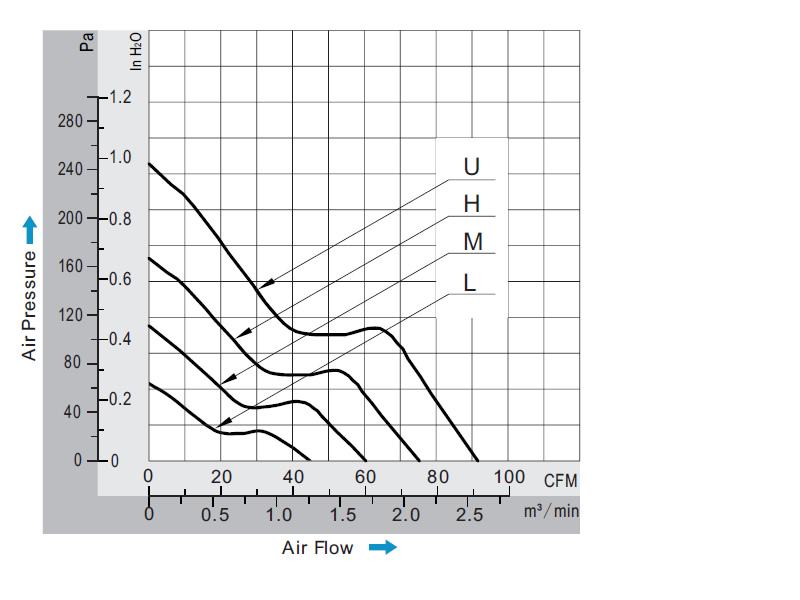

PQ Curve(At Rated Voltage)
Specifications
| 型号 | 轴承 | 额定电压 | 操作电压 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 | ||
| Model | Bearing Type |
Rated Voltage | Operating Voltage |
Input Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H2O | Pa | dB-A | g |
| BU8038#12U | B.S | 12 | 7.0~13.8 | 1.50 | 18.00 | 6500 | 90.60 | 2.57 | 0.99 | 245.56 | 59.0 | 153.0 |
| BU8038#12H | B.S | 12 | 7.0~13.8 | 0.90 | 10.80 | 5500 | 74.46 | 2.11 | 0.68 | 168.48 | 53.0 | 153.0 |
| BU8038#12M | B.S | 12 | 7.0~13.8 | 0.60 | 7.20 | 4500 | 60.08 | 1.70 | 0.46 | 114.74 | 47.0 | 153.0 |
| BU8038#12L | B.S | 12 | 7.0~13.8 | 0.40 | 4.80 | 3500 | 45.11 | 1.28 | 0.26 | 65.70 | 43.0 | 153.0 |
| BU8038#24U | B.S | 24 | 14.0~27.6 | 0.80 | 19.20 | 6500 | 90.60 | 2.57 | 0.99 | 245.56 | 59.0 | 153.0 |
| BU8038#24H | B.S | 24 | 14.0~27.6 | 0.50 | 12.00 | 5500 | 74.46 | 2.11 | 0.68 | 168.48 | 53.0 | 153.0 |
| BU8038#24M | B.S | 24 | 14.0~27.6 | 0.30 | 7.20 | 4500 | 60.08 | 1.70 | 0.46 | 114.74 | 47.0 | 153.0 |
| BU8038#24L | B.S | 24 | 14.0~27.6 | 0.20 | 4.80 | 3500 | 45.11 | 1.28 | 0.26 | 65.70 | 43.0 | 153.0 |
| BU8038#48U | B.S | 48 | 28.0~56.0 | 0.50 | 24.00 | 6500 | 90.60 | 2.57 | 0.99 | 245.56 | 59.0 | 153.0 |
| BU8038#48H | B.S | 48 | 28.0~56.0 | 0.30 | 14.40 | 5500 | 74.46 | 2.11 | 0.68 | 168.48 | 53.0 | 153.0 |
| BU8038#48M | B.S | 48 | 28.0~56.0 | 0.20 | 9.60 | 4500 | 60.08 | 1.70 | 0.46 | 114.74 | 47.0 | 153.0 |
| BU8038#48L | B.S | 48 | 28.0~56.0 | 0.10 | 4.80 | 3500 | 45.11 | 1.28 | 0.26 | 65.70 | 43.0 | 153.0 |
