产品名称：BU5015
产品规格：50x50x15MM
General Specifications
| Material.............................. | Frame: Plastic(UL94V-0) |
| Impeller: Plastic(UL94V-0) | |
| Lead Wire: UL1007AWG#26 or Equivalent (+)Red, (-)Black | |
| Expected Life.................... | Ball Bearing 50,000hrs(40°C) |
| Sleeve Bearing 30,000hrs(40°C) | |
| Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
| Storage temperature -40°C~+70°C(Non-condensing) |

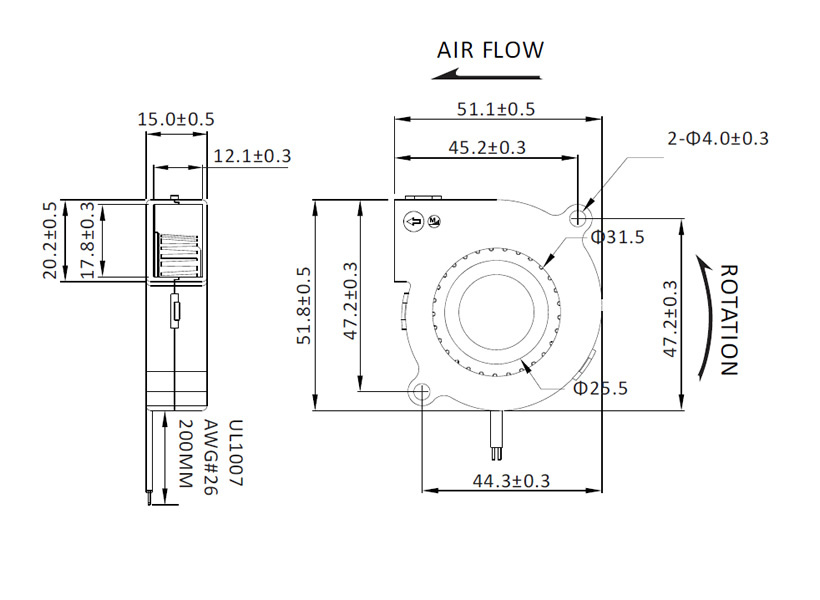

Dimensions(Unit:mm)
Mounting Panel Cutout (Unit:mm)

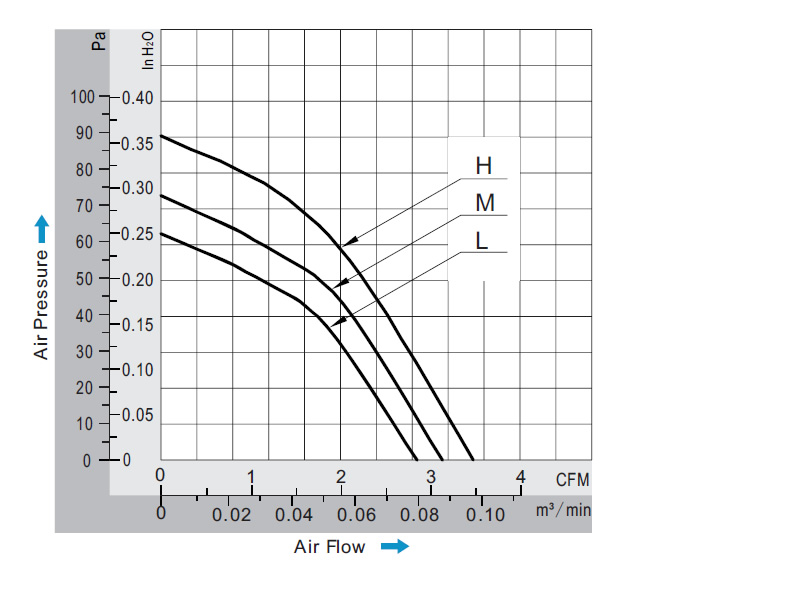

PQ Curve(At Rated Voltage)
Specifications
| 型号 | 轴承 | 电压 | 操作电压 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 |
| Model | Bearing Type |
Rated Voltage | Operating Voltage |
Rated Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B/S | VAC | Hz | Amp | Watt | RPM | CFM | Inch-H2O | dB-A | g |
| BU5015#05L | B.S | 5 | 3.5~5.5 | 0.45 | 2.25 | 5500 | 3.49 | 0.35 | 38.0 | 30.0 |
| BU5015#05M | B.S | 5 | 3.5~5.5 | 0.35 | 1.75 | 5000 | 3.21 | 0.29 | 34.0 | 30.0 |
| BU5015#05H | B.S | 5 | 3.5~5.5 | 0.25 | 1.25 | 4500 | 2.86 | 0.24 | 27.0 | 30.0 |
| BU5015#12L | B.S | 12 | 7.0~13.8 | 0.18 | 2.16 | 5500 | 3.49 | 0.35 | 38.0 | 30.0 |
| BU5015#12M | B.S | 12 | 7.0~13.8 | 0.15 | 1.80 | 5000 | 3.21 | 0.29 | 34.0 | 30.0 |
| BU5015#12H | B.S | 12 | 7.0~13.8 | 0.12 | 1.44 | 4500 | 2.86 | 0.24 | 27.0 | 30.0 |
| BU5015#24L | B.S | 24 | 14.0~27.6 | 0.10 | 2.40 | 5500 | 3.49 | 0.35 | 38.0 | 30.0 |
| BU5015#24M | B.S | 24 | 14.0~27.6 | 0.08 | 1.92 | 5000 | 3.21 | 0.29 | 34.0 | 30.0 |
| BU5015#24H | B.S | 24 | 14.0~27.6 | 0.06 | 1.44 | 4500 | 2.86 | 0.24 | 27.0 | 30.0 |
