产品名称：BU9733
产品规格：97x94x33MM
General Specifications
| Material.............................. | Frame: Plastic(UL94V-0) |
| Impeller: Plastic(UL94V-0) | |
| Lead Wire: UL1007AWG#26 or Equivalent (+)Red, (-)Black | |
| Expected Life.................... | Ball Bearing 50,000hrs(40°C) |
| Sleeve Bearing 30,000hrs(40°C) | |
| Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
| Storage temperature -40°C~+70°C(Non-condensing) |

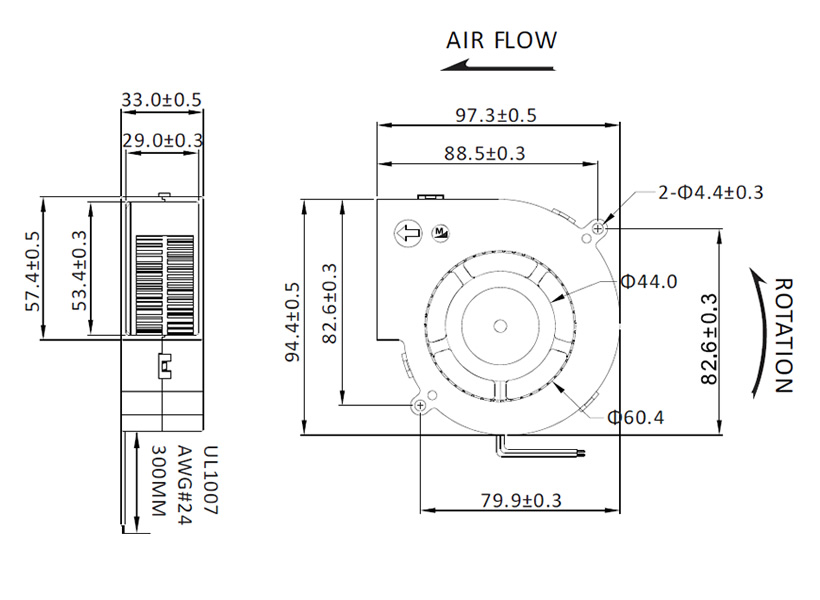

Dimensions(Unit:mm)
Mounting Panel Cutout (Unit:mm)

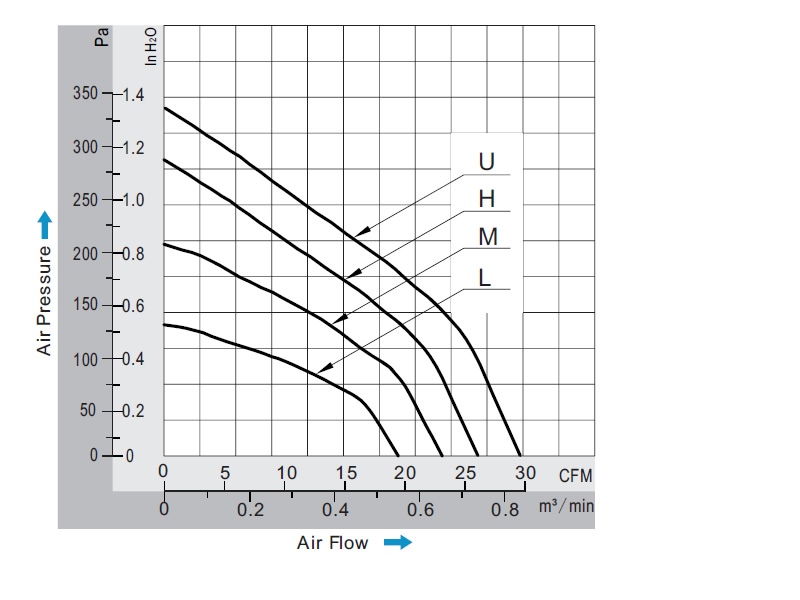

PQ Curve(At Rated Voltage)
Specifications
| 型号 | 轴承 | 电压 | 操作电压 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 |
| Model | Bearing Type |
Rated Voltage | Operating Voltage |
Rated Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B/S | VAC | Hz | Amp | Watt | RPM | CFM | Inch-H2O | dB-A | g |
| BU9733#12U | B.S | 12 | 7.0~13.8 | 1.40 | 16.80 | 4500 | 29.76 | 1.35 | 57.0 | 164.0 |
| BU9733#12H | B.S | 12 | 7.0~13.8 | 1.00 | 12.00 | 4000 | 26.62 | 1.15 | 53.0 | 164.0 |
| BU9733#12M | B.S | 12 | 7.0~13.8 | 0.60 | 7.20 | 3500 | 23.34 | 0.83 | 49.0 | 164.0 |
| BU9733#12L | B.S | 12 | 7.0~13.8 | 0.40 | 4.80 | 3000 | 19.71 | 0.53 | 45.0 | 164.0 |
| BU9733#24U | B.S | 24 | 14.0~27.6 | 1.00 | 24.00 | 4500 | 29.76 | 1.35 | 57.0 | 164.0 |
| BU9733#24H | B.S | 24 | 14.0~27.6 | 0.80 | 19.20 | 4000 | 26.62 | 1.15 | 53.0 | 164.0 |
| BU9733#24M | B.S | 24 | 14.0~27.6 | 0.50 | 12.00 | 3500 | 23.34 | 0.83 | 49.0 | 164.0 |
| BU9733#24L | B.S | 24 | 14.0~27.6 | 0.30 | 7.20 | 3000 | 19.71 | 0.53 | 45.0 | 164.0 |
