产品名称：BU1238
产品规格：120x120x38MM
General Specifications
| Material.............................. | Frame: Aluminum Alloy ,Impeller: Plastic(UL94V-0) |
| Lead Wire: UL1007 22# black Terminal:2.5mm | |
| Motor.................................. | Shaded Pole & Internal Rotor Motor |
| Input Voltage................... | 110V/220V (optional) |
| Dielectric Strength......... | 50/60Hz ,1500VAC 1Min(between input terminal and frame) |
| Expected Life.................... | Ball Bearing 50000hrs, Sleeve Bearing 30000hrs(40°C) |
| Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
| Storage temperature -40°C~+70°C(Non-condensing) |

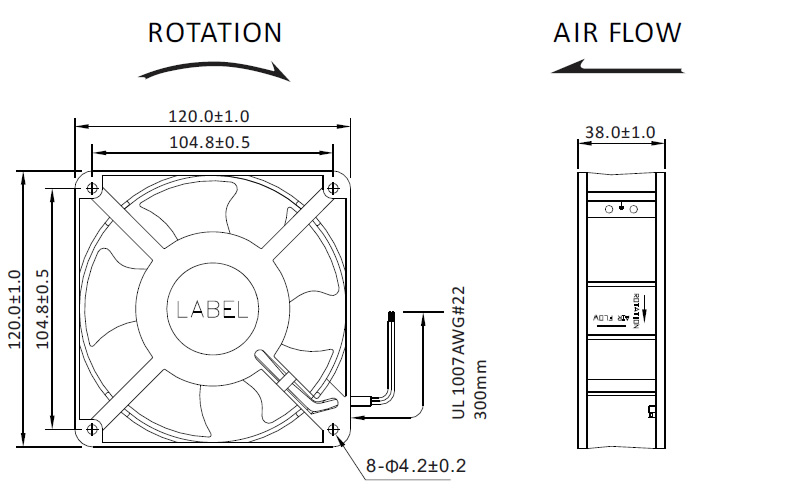

Dimensions(Unit:mm)

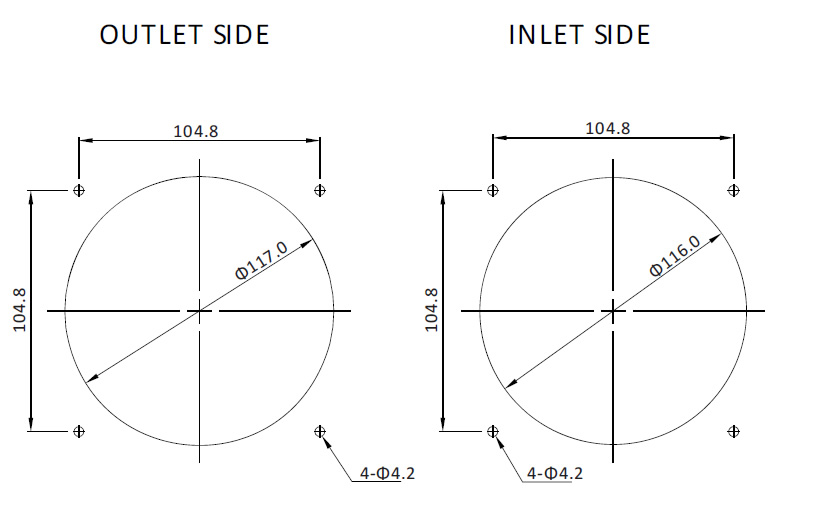

Mounting Panel Cutout (Unit:mm)

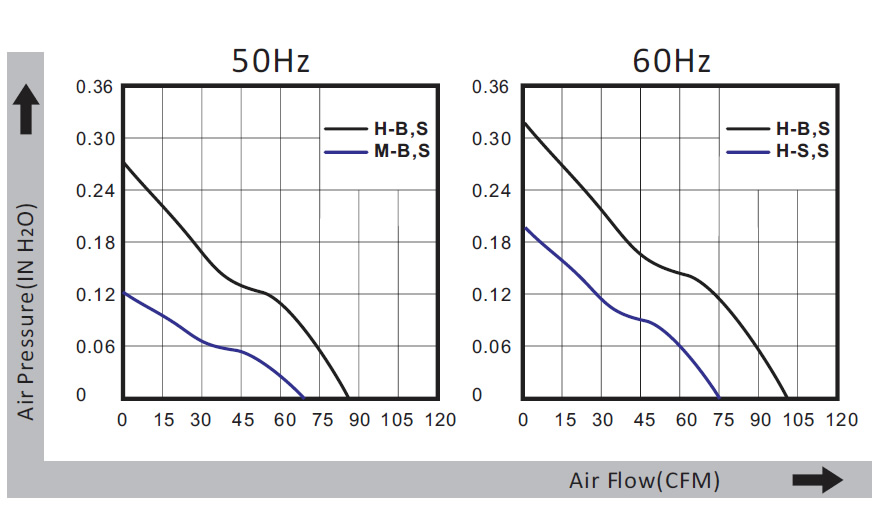

PQ Curve(At Rated Voltage)
Specifications
| 型号 | 轴承 | 电压 | 频率 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 |
| Model | Bearing Type |
Rated Voltage | Freq | Rated Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B/S | VAC | Hz | Amp | Watt | RPM | CFM | Inch-H2O | dB-A | g |
| BU1238MA1SA | Sleeve | 100~120 | 50/60 | 0.20/0.18 | 15/14 | 2100/2400 | 67/75 | 0.12/0.20 | 34/38 | 540 |
| BU1238MA2SA | Sleeve | 200~240 | 50/60 | 0.10/0.09 | 15/14 | 2100/2400 | 67/75 | 0.12/0.20 | 34/38 | 540 |
| BU1238HA1SA | Sleeve | 100~120 | 50/60 | 0.24/0.21 | 23/20 | 2600/3000 | 82/96 | 0.27/0.33 | 40/43 | 540 |
| BU1238HA2SA | Sleeve | 200~240 | 50/60 | 0.14/0.11 | 23/20 | 2600/3000 | 82/96 | 0.27/0.33 | 40/43 | 540 |
| BU1238MA1BA | Dual Ball | 100~120 | 50/60 | 0.20/0.18 | 15/14 | 2100/2400 | 67/75 | 0.12/0.20 | 34/38 | 540 |
| BU1238MA2BA | Dual Ball | 200~240 | 50/60 | 0.10/0.09 | 15/14 | 2100/2400 | 67/75 | 0.12/0.20 | 34/38 | 540 |
| BU1238HA1BA | Dual Ball | 100~120 | 50/60 | 0.24/0.21 | 23/20 | 2600/3000 | 82/96 | 0.27/0.33 | 40/43 | 540 |
| BU1238HA2BA | Dual Ball | 200~240 | 50/60 | 0.14/0.11 | 23/20 | 2600/3000 | 82/96 | 0.27/0.33 | 40/43 | 540 |
