产品名称:BU13538
产品规格:135x135x38MM
General Specifications
Material.............................. | Frame: Aluminum Alloy ,Impeller: Plastic(UL94V-0) |
Lead Wire: UL1007 22# black Terminal:2.5mm | |
Motor.................................. | Shaded Pole & Internal Rotor Motor |
Input Voltage................... | 110V/220V (optional) |
Dielectric Strength......... | 50/60Hz ,1500VAC 1Min(between input terminal and frame) |
Expected Life.................... | Ball Bearing 50000hrs, Sleeve Bearing 30000hrs(40°C) |
Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
Storage temperature -40°C~+70°C(Non-condensing) |

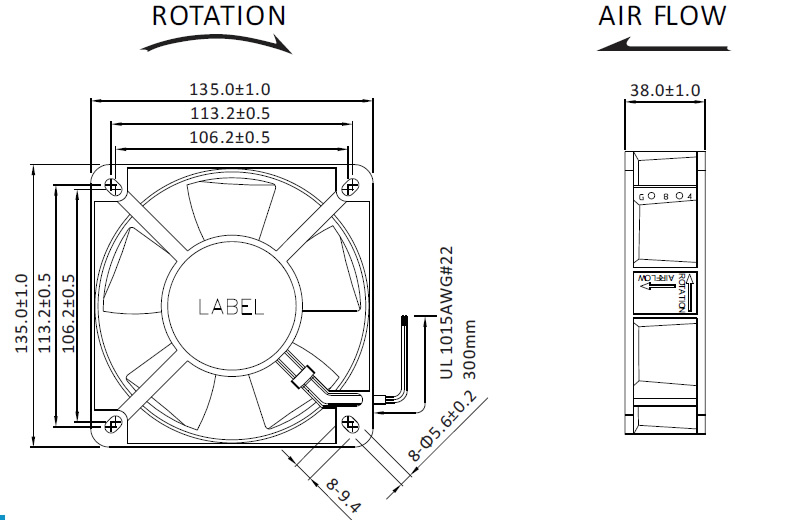

Dimensions(Unit:mm)

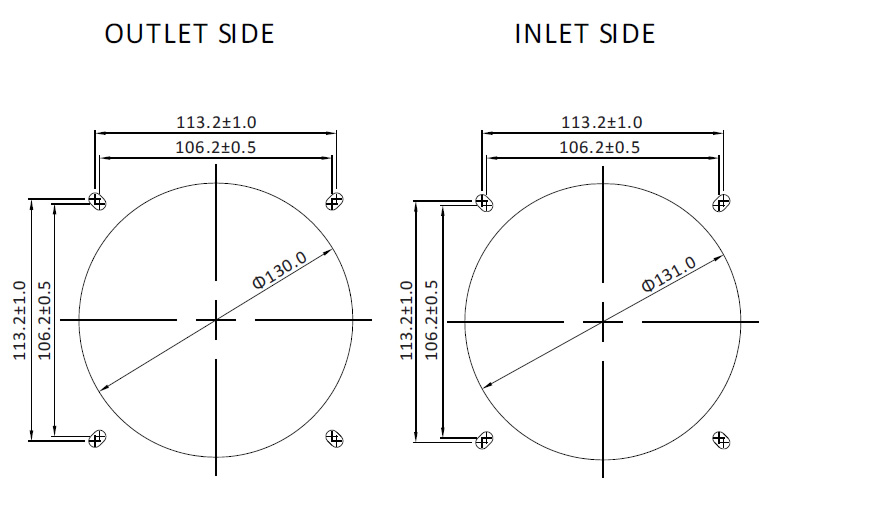

Mounting Panel Cutout (Unit:mm)

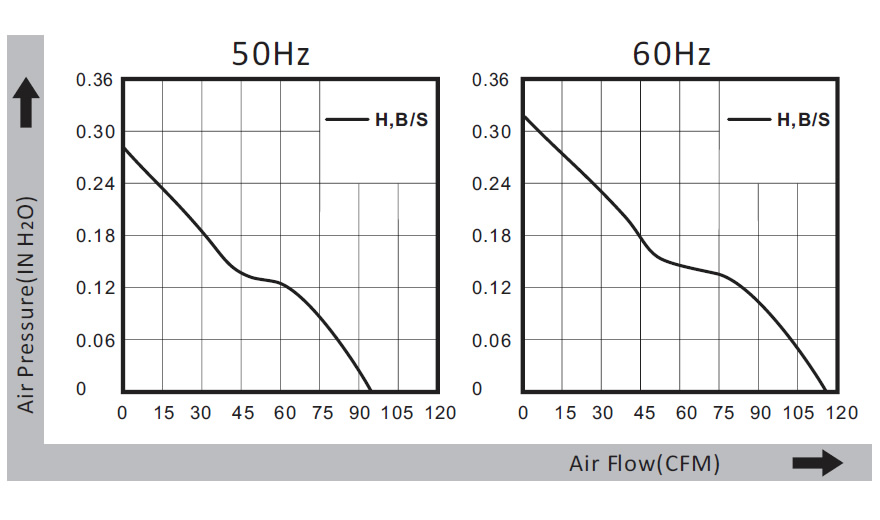

PQ Curve(At Rated Voltage)
Specifications
型号 | 轴承 | 电压 | 频率 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 |
Model | Bearing Type |
Rated Voltage | Freq | Rated Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
Part No. | B/S | VAC | Hz | Amp | Watt | RPM | CFM | Inch-H2O | dB-A | g |
BU13538HA1SA | Sleeve | 100~120 | 50/60 | 0.34/0.30 | 25/20 | 2250/2450 | 95/110 | 0.28/0.32 | 55/57 | 650 |
BU13538HA2SA | Sleeve | 200~240 | 50/60 | 0.18/0.14 | 25/20 | 2250/2450 | 95/110 | 0.28/0.32 | 55/57 | 650 |
BU13538HA1BA | Dual Ball | 100~120 | 50/60 | 0.34/0.30 | 25/20 | 2250/2450 | 95/110 | 0.28/0.32 | 55/57 | 650 |
BU13538HA2BA | Dual Ball | 200~240 | 50/60 | 0.18/0.14 | 25/20 | 2250/2450 | 95/110 | 0.28/0.32 | 55/57 | 650 |
