产品名称：BU1238
产品规格：120x120x38MM
General Specifications
| Material.............................. | Frame: Plastic(UL94V-0) |
| Impeller: Plastic(UL94V-0) | |
| Lead Wire: UL1007AWG#24 or Equivalent (+)Red, (-)Black | |
| Expected Life.................... | Ball Bearing 50,000hrs(40°C) |
| Sleeve Bearing 30,000hrs(40°C) | |
| Temperature Range....... | Operating temperature -10°C~+70°C(Non-condensing) |
| Storage temperature -40°C~+70°C(Non-condensing) |

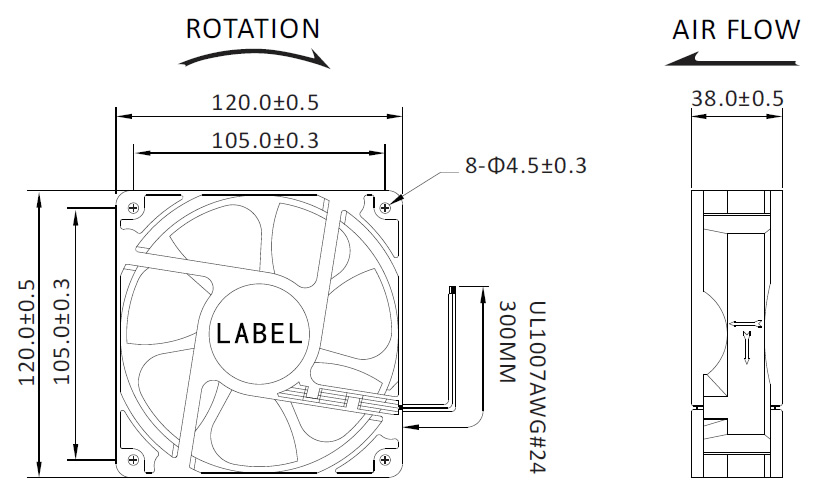

Dimensions(Unit:mm)

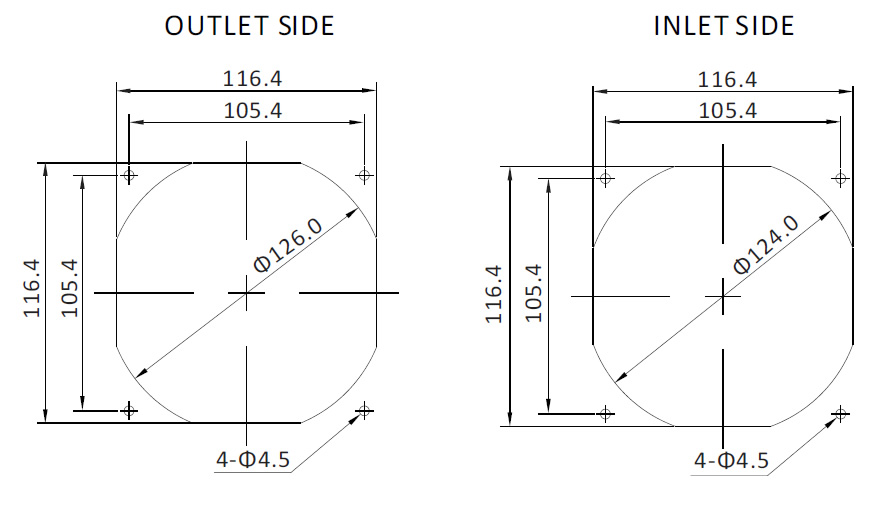

Mounting Panel Cutout (Unit:mm)

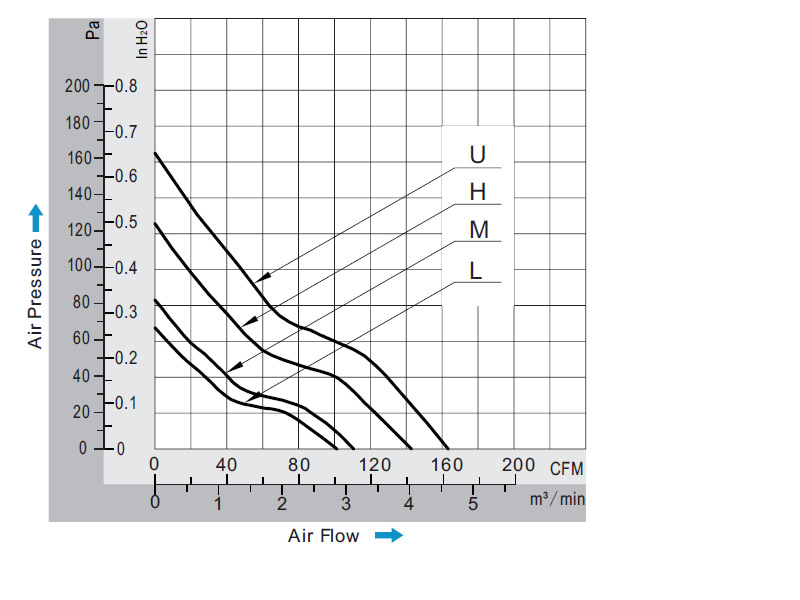

PQ Curve(At Rated Voltage)
Specifications
| 型号 | 轴承 | 额定电压 | 操作电压 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪声 | 重量 | ||
| Model | Bearing Type |
Rated Voltage | Operating Voltage |
Input Current |
Input Power |
Speed | Max Air Flow | Max Static Pressure | Noise | Weight | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H2O | Pa | dB-A | g |
| BU1238#12U | B.S | 12 | 7.0~13.8 | 1.50 | 18.00 | 4000 | 165.05 | 4.67 | 0.60 | 150.63 | 58.0 | 262.0 |
| BU1238#12H | B.S | 12 | 7.0~13.8 | 1.00 | 12.00 | 3500 | 144.21 | 4.08 | 0.50 | 124.25 | 53.0 | 262.0 |
| BU1238#12M | B.S | 12 | 7.0~13.8 | 0.60 | 7.20 | 3000 | 115.29 | 3.27 | 0.34 | 83.55 | 48.0 | 262.0 |
| BU1238#12L | B.S | 12 | 7.0~13.8 | 0.40 | 4.80 | 2500 | 101.85 | 2.88 | 0.26 | 64.63 | 40.0 | 262.0 |
| BU1238#24U | B.S | 24 | 14.0~27.6 | 1.00 | 24.00 | 4000 | 165.05 | 4.67 | 0.60 | 150.63 | 58.0 | 262.0 |
| BU1238#24H | B.S | 24 | 14.0~27.6 | 0.60 | 14.40 | 3500 | 144.21 | 4.08 | 0.50 | 124.25 | 53.0 | 262.0 |
| BU1238#24M | B.S | 24 | 14.0~27.6 | 0.40 | 9.60 | 3000 | 115.29 | 3.27 | 0.34 | 83.55 | 48.0 | 262.0 |
| BU1238#24L | B.S | 24 | 14.0~27.6 | 0.20 | 4.80 | 2500 | 101.85 | 2.88 | 0.26 | 64.63 | 40.0 | 262.0 |
| BU1238#48U | B.S | 48 | 28.0~56.0 | 0.60 | 28.80 | 4000 | 165.05 | 4.67 | 0.60 | 150.63 | 58.0 | 262.0 |
| BU1238#48H | B.S | 48 | 28.0~56.0 | 0.40 | 19.20 | 3500 | 144.21 | 4.08 | 0.50 | 124.25 | 53.0 | 262.0 |
| BU1238#48M | B.S | 48 | 28.0~56.0 | 0.20 | 9.60 | 3000 | 115.29 | 3.27 | 0.34 | 83.55 | 48.0 | 262.0 |
| BU1238#48L | B.S | 48 | 28.0~56.0 | 0.12 | 5.76 | 2500 | 101.85 | 2.88 | 0.26 | 64.63 | 40.0 | 262.0 |
